Nissan Leaf
 to
 Toyota Rav4
& Kubvan
 Project		 Nissan Leaf on Plywood Updated
August 17
2020

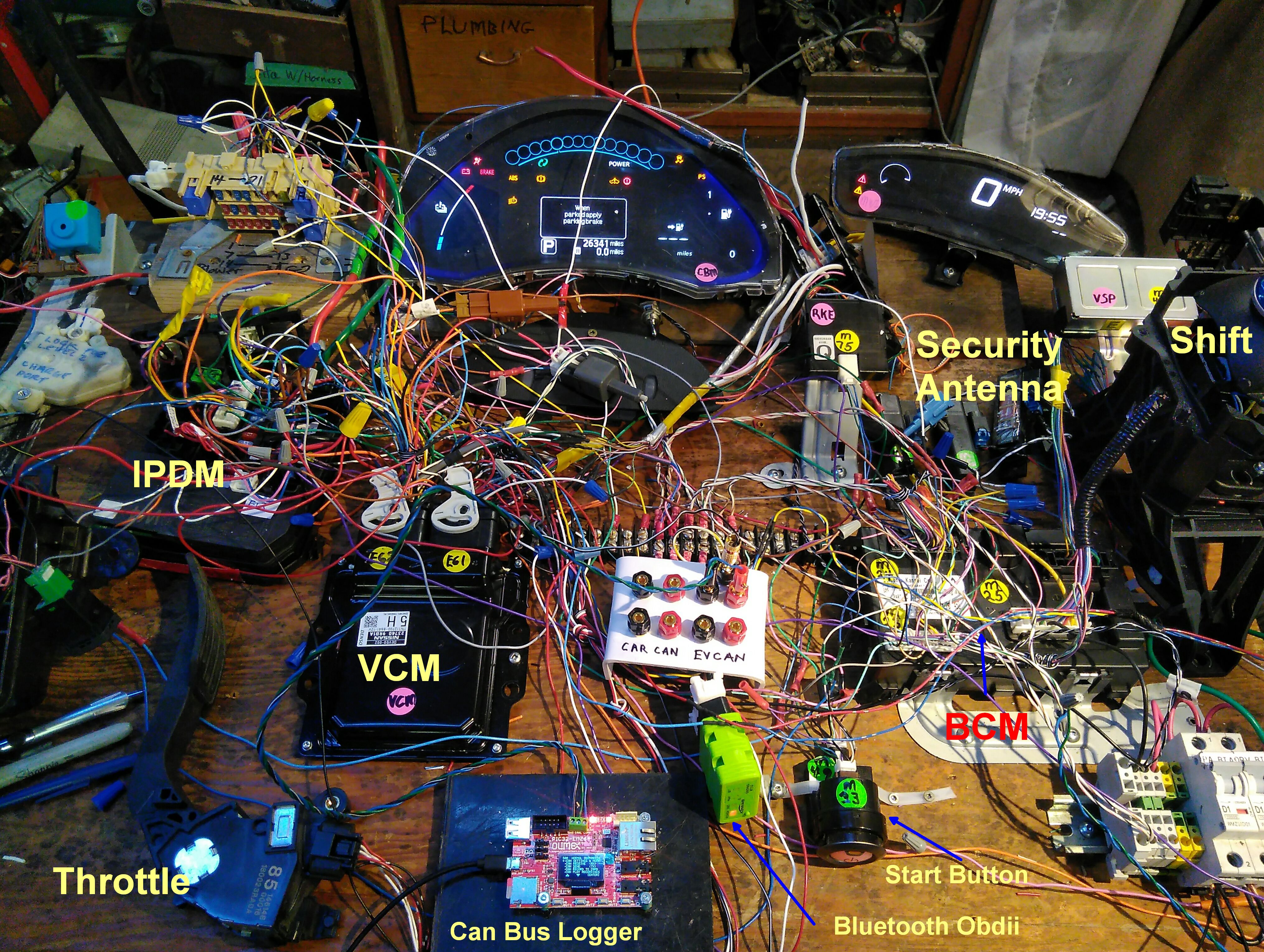

Leaf on Plywood

click for higher res

Links

 1- My Nissan Leaf forum

2-

3-

4-

5-

6-

7-

THIS IS AN UNFORMATED REPOSITORY OF INFORMATION FOR KNOWLEDGE EXCHANGE.

If you have stumbled across this page and are interested details can be found on the my nissan leaf forum. Some of the older post will not be current.

Everything should be questioned, this is a work in progress. If you can help please contribute thru the nissan my leaf forum or send me an email > peter at evmotorworks dot ca

Links to code  and recording for inserting multiple messages updated August 17/20

CanBus recording            This is the results recording on the OBC/PDM side of a can bridge on the EV can bus, during message insertion.

can-bridge-firmware.c      This the significant part of the code to generate the above recording on an incomplete car pictured above and as diagramed below.

can-bridge-firmware.h      As above

mcp25xx.c                       As above

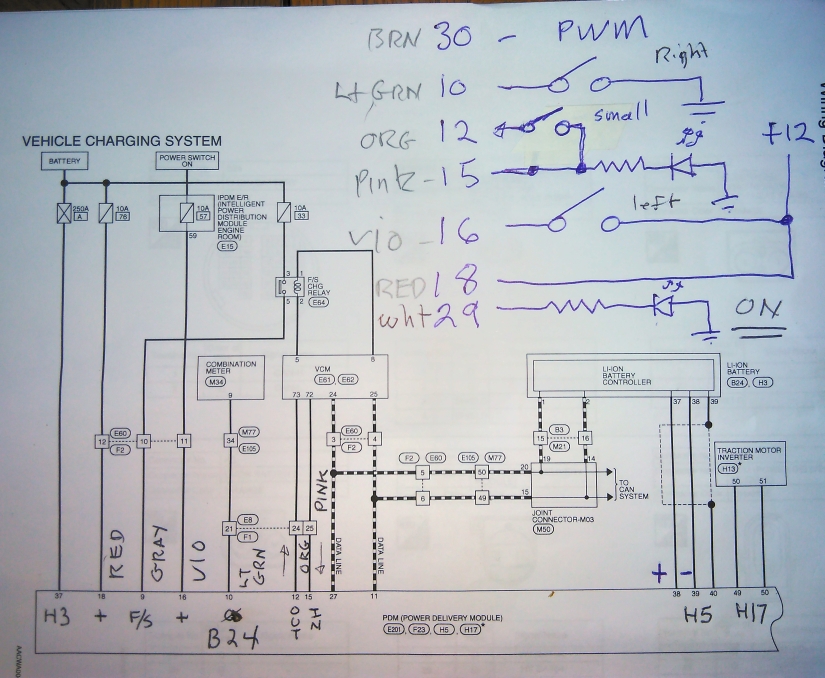

 pdm test hookup
Early test setup
Other pages of interest

1 -PDM basics		 OBC monitoring and message insertion layout.

can bus layout

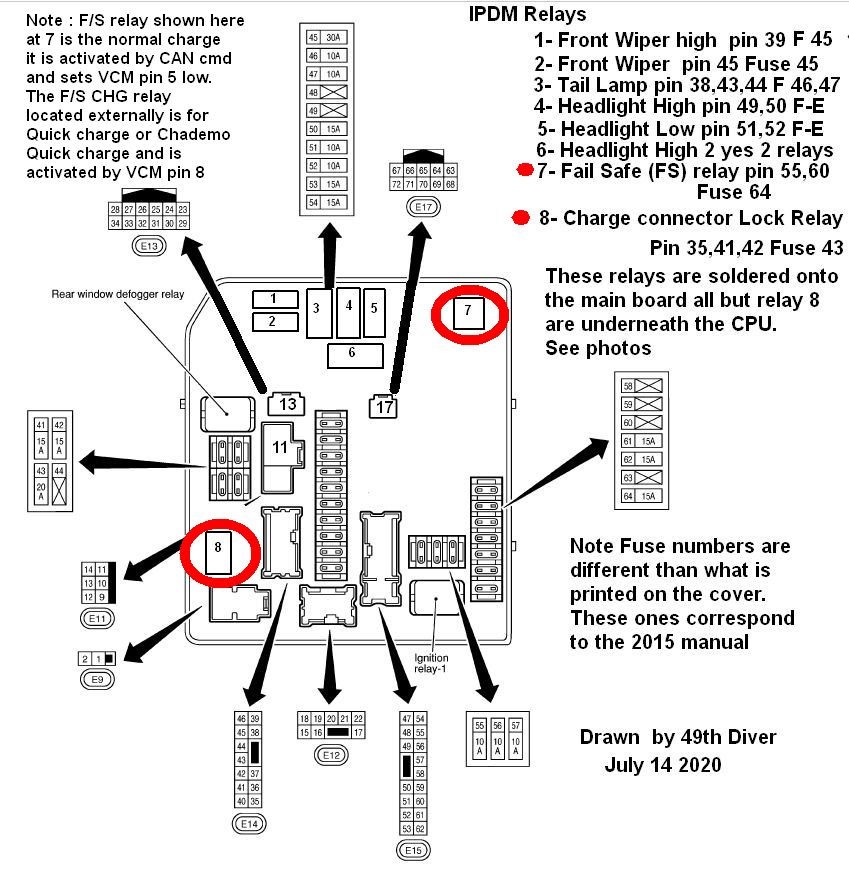

  IPDM detail not included in the manual click for higher res.



 leaf ipdm
The OBC main Connector
  • Pin 10, Plug in signal, LightGreen
  • Pin 11, EV System CAN-L, DarkGreen
  • Pin 12, HV detecting circuit Interlock In, Orange
  • Pin 15, HV detecting signal Interlock Out, Pink
  • Pin16,  Power On (IGN) , Violet
  • Pin 18, Battery Power Supply, Red
  • Pin 27, EV System CAN-H, Blue
  • Pin 29, EVSE Connection Signal, White
  • Pin30,  EVSE communication PWM, Brown

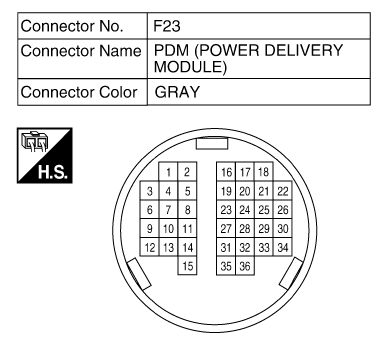

 Leaf PDM B24
